Igbt Hom Fais Fab Compensator 220v Static Var Generator 3 Theem 3 Hlau / 4 Hlau 25kvar 50kvar

Lus piav qhia luv luv:

Noker peb theem 200V mini zoo li qub var generator SVG txais yuav peb theem thev naus laus zis, siv rau peb theem load unbalance, lub zog kho kom haum, lub zog sib haum xeeb lim dej, txo cov kab poob, thiab ua kom lub neej ntev ntawm cov khoom siv fais fab.

Noker peb theem 200V mini Static Var Generator yog tsim los tsim ib tug hybrid Var them nyiaj (HVC) tov nrog capacitors thiab reactors Vim nws cov kev ua tau zoo thiab tus nqi zoo tshaj plaws, nws yog dav siv.

Xa email rau peb

Product Detail

Khoom cim npe

Nta

Svg static var generator xyuas cov load tam sim no los ntawm sab nraud CT thiab ua kev suav los ntawm sab nraud DSP los soj ntsuam cov ntsiab lus reactive ntawm cov load tam sim no.Tom qab ntawd, nws tswj PWM teeb liab lub tshuab hluav taws xob raws li qhov chaw xa cov cim tswj mus rau sab hauv IGBT.Nyob rau hauv txoj kev no, nws generates reactive them tam sim no los siv dynamic reactive zog them.

1.Peb-theem inverter technology, siab zog efficiency,
2.Kev sib koom ua ke ntawm kev sib npaug, lub zog them nyiaj, kev sib haum xeeb lim rau hauv ib qho module.
3.Built-in RS485 interface los tswj cov ntse capacitor.

4.High-speed teb, Zuag qhia tag nrho lub sij hawm teb <7.8ms
5.Load balancing thiab unloading ntawm nruab nrab nyob ntawm tej
6.Flexibility thiab modularity.

Specification

220V SVG tshawb xyuas cov load tam sim no los ntawm CT sab nraud thiab ua kev suav los ntawm DSP sab nraud los txheeb xyuas cov ntsiab lus reactive ntawm cov khoom tam sim no.Tom qab ntawd, nws tswj PWM teeb liab lub tshuab hluav taws xob raws li qhov chaw xa cov cim tswj mus rau sab hauv IGBT.Nyob rau hauv txoj kev no, nws generates reactive them tam sim no los siv dynamic reactive zog them.

Network voltage (V)	200/400		690 ib
Network voltage ntau	-20% --- + 20%
Network zaus (Hz)	50/60 (-10% - + 10%)
Scope ntawm kev them nyiaj	Capacitive thiab inductive tsis tu ncua adjustable
CT mounting txoj kev	Qhib los yog kaw voj (pom zoo nyob rau hauv parallel ua haujlwm)
CT mounting txoj hauj lwm	Daim phiaj sab / load sab
Teb sijhawm	10ms los yog tsawg dua
Txoj kev sib txuas	3-xaim / 4-xaim
Muaj peev xwm tshaj	110% Kev ua haujlwm tsis tu ncua, 120% -1min
Circuit Court topology	Peb-theem topology
Hloov zaus (khz)	20 kHz
Rov qab	Ib chav tsev twg tuaj yeem dhau los ua ib chav nyob ib leeg
Kev tswj hwm tsis sib npaug	Muaj
SVC	Muaj
Zaub	Tsis muaj npo / 4.3 / 7 nti npo (yeem)
Peev xwm (kVar)	25, 50, 75, 100, 150		50, 100
Harmonic ntau yam	2nd rau 50th order
Kev sib txuas lus chaw nres nkoj	RS485 ua
	CAN raws tu qauv, RJ45 interface, rau kev sib txuas lus ntawm modules
Lub suab nrov	＜56dB Max rau ＜69dB (nyob ntawm cov qauv lossis kev thauj khoom)
Mounting hom	Txee	Phab ntsa-mounted, khib-mounted, txee
Qhov siab	Derating siv ≥1500m
Kub	Kev khiav hauj lwm kub: -45 ℃ - 55 ℃, derating siv tshaj 55 ℃
	Cia kub: -45 ℃ -70 ℃
Cov av noo	5% -95% RH, tsis-condensing
Chav kawm tiv thaiv	IP20
Tsim / pom zoo	EN 62477-1 (2012), EN 61439-1 (2011)
EMC	EN / IEC 61000-6-4, Chav A
Daim ntawv pov thawj	CE, CQC

Cov khoom tso saib

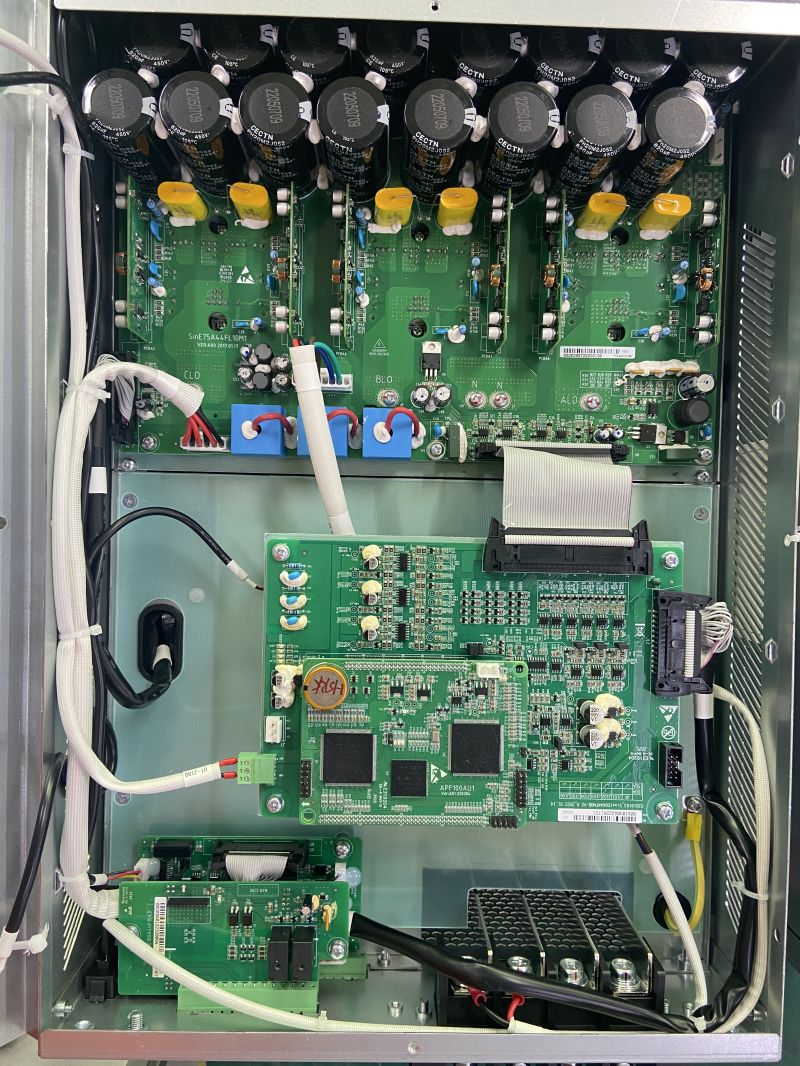

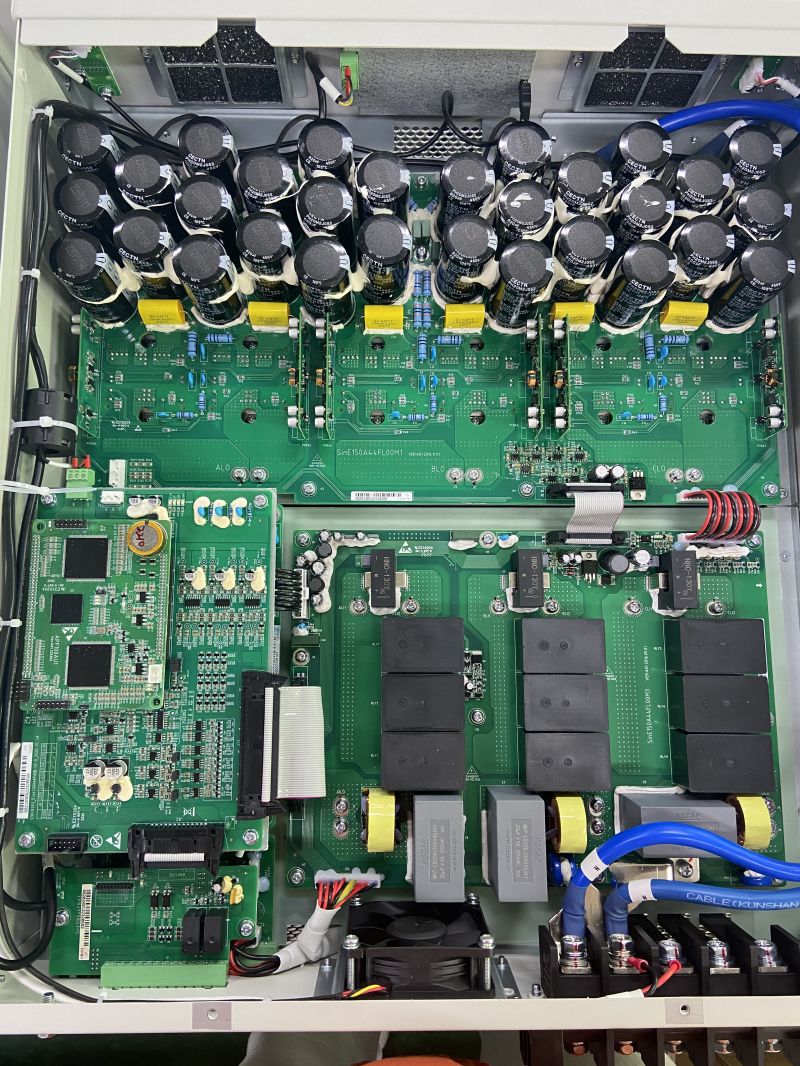

Lub 220v mini static var generator txais cov qauv kho vajtse ntawm DSP + FPGA, thiab cov khoom siv tau zoo.Thermal simulation tshuab yog siv rau thermal tsim ntawm lub system, thiab multi-layer PCB Circuit Court board tsim kom ntseeg tau tias kev sib cais ntawm siab thiab tsis tshua muaj siab, uas muab guarantee rau kev ruaj ntseg system.

Daim ntawv thov

Qhov twg muaj qhov tsawg-voltage transformer ntsia thiab ib sab ntawm cov khoom siv hluav taws xob loj yuav tsum tau nruab nrog cov khoom siv hluav taws xob reactive svg static var generator (qhov no yog cov kev cai ntawm lub teb chaws fais fab kev lag luam), tshwj xeeb tshaj yog cov uas tsis tshua muaj fais fab kev lag luam mines, cov lag luam, Cov chaw nyob yuav tsum tau nruab.Loj asynchronous motors, transformers, vuam tshuab, punches, lathes, cua compressors, presses, cranes, smelting, steel dov, aluminium dov, loj keyboards, hluav taws xob irrigation khoom, hluav taws xob locomotives, thiab lwm yam ntxiv rau incandescent teeb pom kev zoo nyob rau hauv cov cheeb tsam, huab cua. cua txias, tub yees, thiab lwm yam., kuj yog cov khoom siv hluav taws xob reactive uas tsis tuaj yeem tsis quav ntsej.Qhov teeb meem hluav taws xob nyob deb nroog yog qhov tsis zoo, feem ntau thaj chaw tsis muaj hluav taws xob, qhov hluav taws xob hloov pauv loj heev, lub zog hluav taws xob tshwj xeeb yog qis, txhim kho cov cuab yeej them nyiaj yog ib qho kev ntsuas zoo los txhim kho cov khoom siv hluav taws xob thiab txhim kho kev siv hluav taws xob.220v mini static var generator yuav tsum yog qhov zoo tshaj plaws reactive fais fab nyiaj them nyiaj ntaus ntawv.

1.Txhua hom kev lag luam kev teeb tsa
2. Cov cuab yeej siv hloov pauv ceev tsav (VSD)
3.arcing khoom: hluav taws xob arc rauv (EAF), ladle furnace (LF), thiab arc vuam tshuab
4.Switching fais fab mov: computer, TV, tshuab luam ntawv, tshuab luam ntawv, cua txias, PLC
5. UPS system
6.Data Center
7. Cov khoom siv kho mob: MRI scanner, CT scanner, X-ray tshuab, thiab linear accelerator
8. Cov khoom siv teeb pom kev zoo: LED, fluorescent teeb, mercury vapor teeb, sodium vapor teeb, thiab lub teeb ultraviolet
9.Solar inverter thiab cua turbine generators

Kev pabcuam neeg siv khoom

1. ODM / OEM kev pab cuam muaj.

2. Kev txiav txim ceev kom paub meej.

3. Lub sijhawm xa khoom sai.

4. Lub sijhawm them nyiaj yooj yim.

Tam sim no, lub tuam txhab tau nthuav dav kev lag luam txawv teb chaws thiab thoob ntiaj teb kev teeb tsa.Peb tau cog lus los ua ib qho ntawm kaum lub tuam txhab xa tawm sab saum toj hauv Suav teb cov khoom siv hluav taws xob tsis siv neeg, ua haujlwm rau lub ntiaj teb nrog cov khoom zoo thiab ua tiav qhov kev yeej-yeej nrog ntau tus neeg siv khoom.
