2000w Peak 4000w Dc Rau Ac 220v 230v Inverter Pcba Ntshiab Sine Wave

Lus piav qhia luv luv:

FSA series yog kev ua haujlwm siab tawm ntawm daim phiaj ntshiab sine yoj DC-AC kev rho tawm inverter board.Ntshiab sine yoj inverter Circuit Court board, siv qhov tseeb dc / ac inverter technology, tawm tswv yim thiab tso zis rau txhim khu kev qha kev rho tawm.Tag nrho cov Circuit Court boards raug kuaj nruj ua ntej xa.

Cov qauv tsim digital ntawm dual inlet ib leeg-chip microcomputer tswj muaj cov yam ntxwv ntawm kev cuam tshuam, teb ceev thiab lwm yam.Lub Circuit Court tshiab tuaj yeem hloov kho rau kev hloov pauv, nrog kev ntseeg siab, kev tswj cov chaw taws teeb wireless lossis wired tswj, yog koj qhov kev xaiv zoo tshaj plaws inverter.


Product Detail

Khoom cim npe

Nta

Pure sine yoj lub zog inverter ua kom muaj zog ruaj khov thiab tso zis ntau zaus, txhim khu kev qha & huv si.Nws tuaj yeem tiv thaiv overheating thiab kev puas tsuaj rau cov cuab yeej rhiab heev.Cov ntshiab sine yoj lub zog inverter tsis muaj cov pa phem electromagnetic hauv daim phiaj fais fab.Nws muaj peev xwm thauj khoom muaj zog, tuaj yeem nqa cov load inductive thiab lwm yam khoom siv dav dav ac.

1. Pure sine yoj tso zis Distortion rate≤3%;
2. -40 ℃ ~ + 50 ℃ dav ua haujlwm ntau yam;
3. Ntse kiv cua txias ua haujlwm hom;
4. Txhawb RS485 & CANBUS kev sib txuas lus (yeem);

5. Input rov qab kev twb kev txuas, tsis tshua muaj voltage, high voltage, output overload, luv luv Circuit Court, tshaj kub.etc.;
6. Wireless chaw taws teeb tswj lossis wired chaw taws teeb tswj thiab lwm yam (yeem);
7. DC input thiab AC tso zis yog cais tag nrho;
8. Haum rau cov roj teeb lead acid thiab lithium roj teeb;

Specification

Qauv FSA 500C FSA 1000C FSA 1200C FSA 1500C FSA 2000C

Tso zis

Lub zog tsis tu ncua

500 watt

1000 Watt 1200 Watt 1500 Watt 2000 Watt
Peak zog

1000 Watt

2000 Watt 2400 W 3000 Watt 4000 W
Tso zis Waveform

Pure Sine Wave (Distortion rate≤3%)

Tso zis zaus

50/60Hz ± 2%

Cov zis hluav taws xob Kev Them Nqi: 230V ± 5V Kev Them Nqi: 110V ± 5V
Lwm yam Voltage: 230V / 240V Lwm yam Voltage: 110V / 120V

Tswv yim

Input voltage

12 VDC

24 VDC

12 VDC

24 VDC

Input Voltage tus nqi DC9.5V-15.5V DC19V-31.5V DC9.5V-15.5V DC19V-31.5V
Tsawg Voltage tswb DC 10.5V ± 0.5V DC21V ± 0.5V DC 10.5V ± 0.5V DC21V ± 0.5V
Kev tiv thaiv hluav taws xob tsawg DC9.5 ± 0.5V DC19 ± 0.5V DC9.5 ± 0.5V DC19 ± 0.5V
Tsawg Voltage Recovery DC12V ± 0.5V DC 24.5V ± 0.5V DC12V ± 0.5V DC 24.5V ± 0.5V
Tshaj Voltage Recovery DC 15V ± 0.5V DC 30.5V ± 0.5V DC 15V ± 0.5V DC 30.5V ± 0.5V
Tshaj qhov kev tiv thaiv hluav taws xob DC 15.5V ± 0.5V DC 31.5V ± 0.5V DC 15.5V ± 0.5V DC 31.5V ± 0.5V
Kev tiv thaiv tawm Tshaj Kub Tiv Thaiv

70 ℃ ± 5 ℃

Kev tiv thaiv hom: rov pib dua tom qab buzzer tsis tu ncua tswb 5 lub suab nrog kev xa tawm cov zis hluav taws xob thiab kub qis dua 65 degrees.
Output luv Circuit Court Kev tiv thaiv hom: rov ua kom cov zis tom qab tua hluav taws xob tawm thiab tsis suav nrog qhov muaj peev xwm luv luv.
Kev tiv thaiv overload Lub load ntawm 105-115% kav rau 180 vib nas this, thiab ntawm 115-150% rau 10 vib nas this
Kev tiv thaiv hom: rov ua kom cov zis tom qab lub tswb nrov nrov nrog muab tso tawm thiab qis dua
Hloov ua tau zoo

92% (tag nrho load)

Wireless chaw taws teeb tswj

50m Barrier-free tswj inverter

Qauv: RS-485

Kev sib txuas lus RS-485

CANBUS

CANBUS kev sib txuas lus

TTL

TTL kev sib txuas lus

Tsis muaj load tam sim no

≤ 0.3A (DC 12V)

Ua haujlwm kub

〔-20 ℃ 〕 TO 〔 + 50 ℃ 〕

Ua haujlwm av noo

20-90% RH Tsis-condensing

Cia Kub

〔-30 ℃ 〕 TO 〔 70 ℃ 〕

Txias hom Ntse ntsuas kub tswj cua txias, lossis kiv cua pib thaum kub> 100W
Daim ntawv pov thawj

CE, FCC thiab ROHS

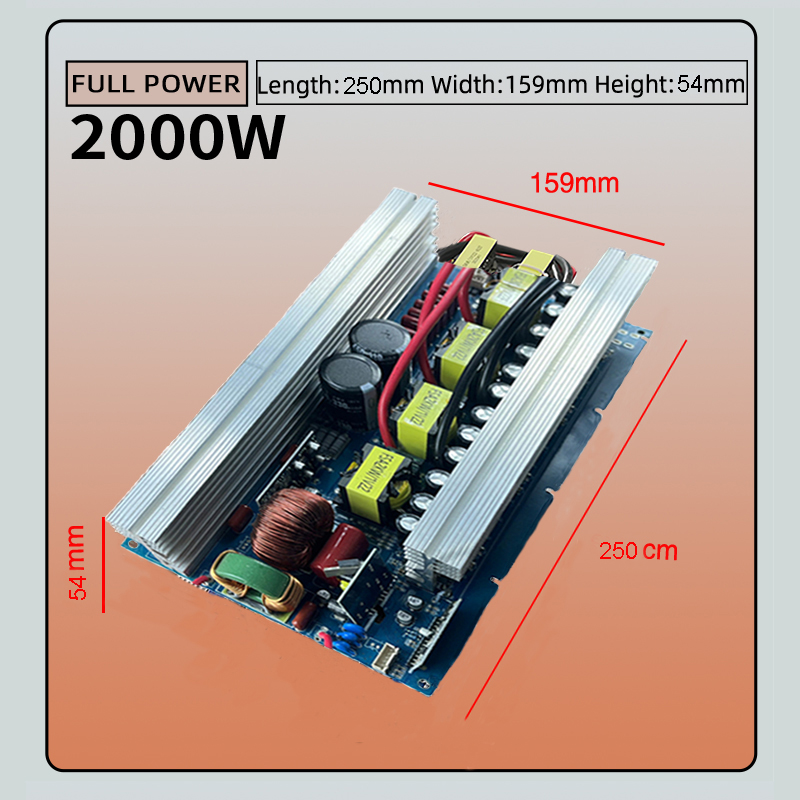

Dimension

2000w_dim
kev (1)

Pure sine yoj fais fab inverters tau dav siv hauv kev thauj mus los, tsheb me me, RVs, tsheb loj, tsheb ciav hlau, tsheb ciav hlau, dav hlau thiab lwm yam tsheb thauj mus los.Nyob rau tib lub sijhawm, cov ntshiab sine yoj inverter siv rau hauv ralliways, kev tswj kev lag luam, kev sib txuas lus thiab kev sib pauv tsheb, cov chaw ua haujlwm hauv pej xeem, kev lag luam thiab kev ua liaj ua teb, kev ua tub rog kev kho mob, kev thauj mus los, thiab lwm yam. Pure sine yoj zog inverter tsis tsuas yog coj peb cov kev tiv thaiv sib txawv. xws li, kev tiv thaiv dhau-voltage, kev tiv thaiv overload, kev tiv thaiv tshaj tam sim no, kev tiv thaiv kub dhau, kev tiv thaiv luv luv, kev tiv thaiv zoo thiab tsis zoo, thiab lwm yam tab sis kuj tseem tiv thaiv kev nyab xeeb ntawm cov neeg siv.

Kev pabcuam neeg siv khoom

1. ODM / OEM kev pab cuam muaj.

2. Kev txiav txim ceev kom paub meej.

3. Lub sijhawm xa khoom sai.

4. Lub sijhawm them nyiaj yooj yim.

Tam sim no, lub tuam txhab tau nthuav dav kev lag luam txawv teb chaws thiab thoob ntiaj teb kev teeb tsa.Peb tau cog lus los ua ib qho ntawm kaum lub tuam txhab xa tawm sab saum toj hauv Suav teb cov khoom siv hluav taws xob tsis siv neeg, ua haujlwm rau lub ntiaj teb nrog cov khoom zoo thiab ua tiav qhov kev yeej-yeej nrog ntau tus neeg siv khoom.
